Design flooring product composition

One surface area, three product compositions

Different spaces require different solutions, especially when it involves the perfect floor covering. wineo design floors are distinguished by their innovative composition and the flexible ways they can be used.
Choose from three versions:

Design flooring to glue
100 % elastic – 2 mm to 2.5 mm product thickness


Design flooring to click in with Connect technology
100 % elastic – 5 mm product thickness


Multi-Layer to click in with LocTec technology
Design flooring surface on HDF-Aqua-Protect core board – 9 mm product thickness

Design flooring for clicking in

  • Very elastic
  • Available in a thickness of 4.5 mm to 5 mm
  • Connect locking for particularly quick and tidy installation

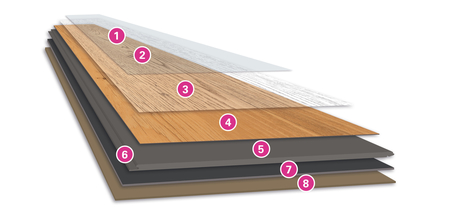

wineo Designboden Aufbau Klicken
  1. Surface seal

    Protects the product and enables easy cleaning and maintenance

  2. Surface texture

    A range of surface textures ensure an authentic feel and appearance

  3. Wear layer

    Guarantees a high level of durability and is the basis for categorising flooring into the respective application areas

  4. Decor

    The decor film offers a host of design options

  5. Base layer with glass fibre reinforcement

    Lends the product an especially high level of dimensional stability and optimum point-load resistance

  6. Profile connection

    The Connect locking system was specially developed for elastic design flooring and enables planks to be clicked into each other without any problems.

  7. Backing

    With its waffle back texture, it is used to help ensure balance and optimal installation

  8. Noise-absorbing mat

    Available separately: the silentCOMFORT noise-absorbing mat with non-slip effect for bridging any unevenness and reducing the noise level of peoples' steps.

Design flooring for gluing

  • Very elastic
  • Minimal thickness of 2 mm to 2.5 mm
  • Particularly durable and long-lasting
  • Ideal for refurbishment work and damp areas

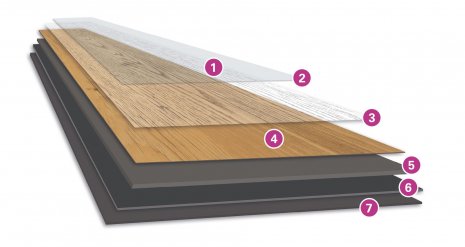

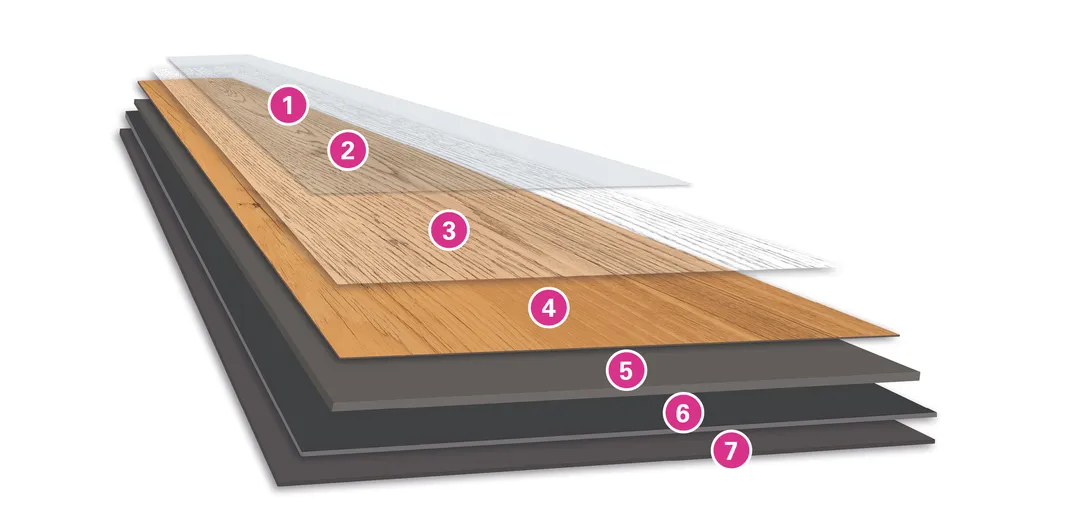

wineo Designboden Aufbau Kleben
  1. Surface seal

    Protects the product and enables easy cleaning and maintenance.

  2. Surface texture

    A range of surface textures ensure an authentic feel and appearance

  3. Wear layer

    Guarantees a high level of durability and is the basis for categorising flooring into the respective application areas

  4. Decor

    The decor film offers a host of design options

  5. Base layer

    Lends the product a high level of dimensional stability and optimum point-load resistance

  6. Backing

    With its waffle back texture, it is used to help ensure balance and optimal installation

  7. Noise-absorbing mat

    Available separately: the silentPREMIUM self-adhesive noise-absorbing mat for bridging any unevenness and reducing the noise level of peoples' steps.

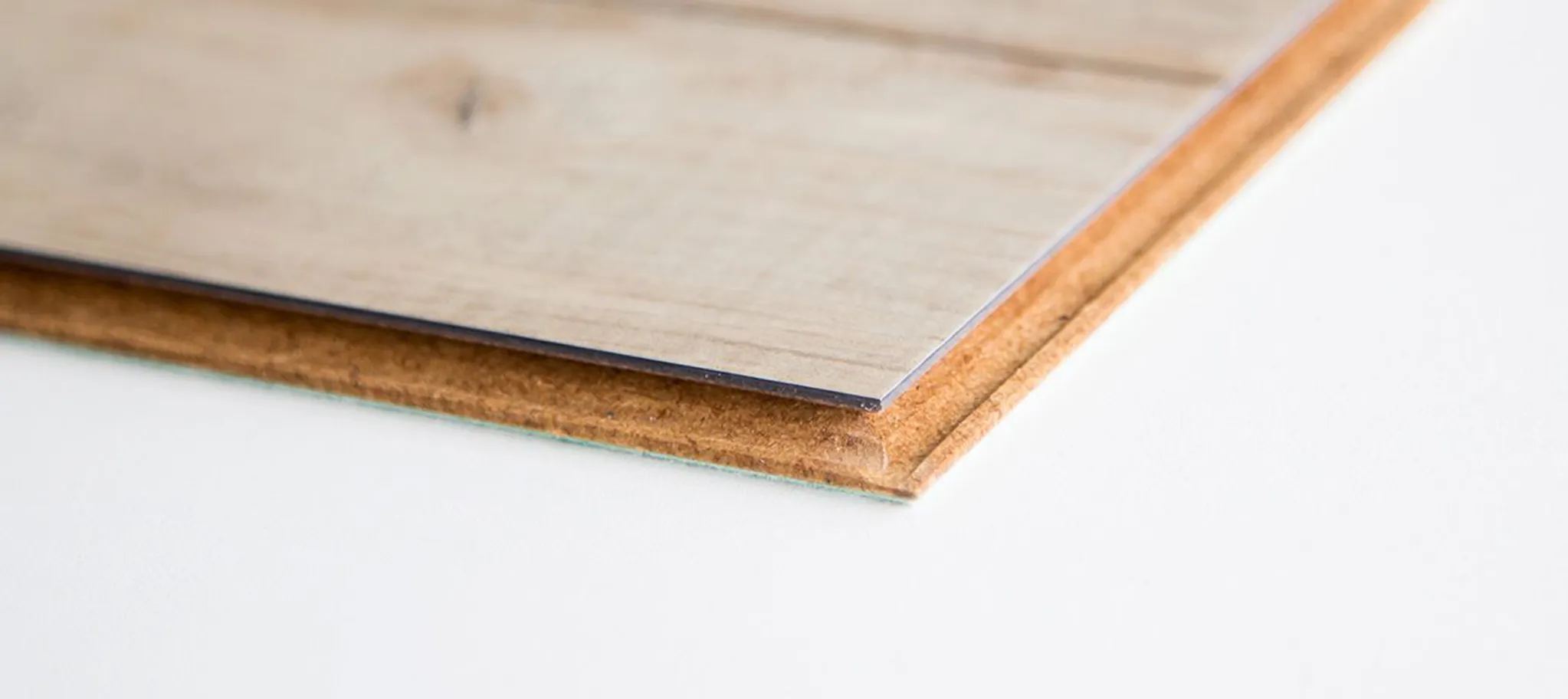

Multi-Layer design flooring for clicking in

  • Design flooring surface on Aqua-Protect® HDF core board
  • 9 mm thick for optimally bridging any unevenness in the substrate
  • Particularly heat-resistant and dimensionally stable
  • Integrated soundPROTECT noise-absorbing mat for reducing footfall sound
  • LocTec® locking for easy installation

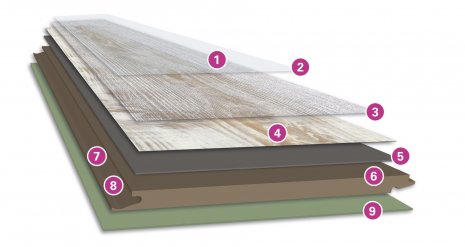

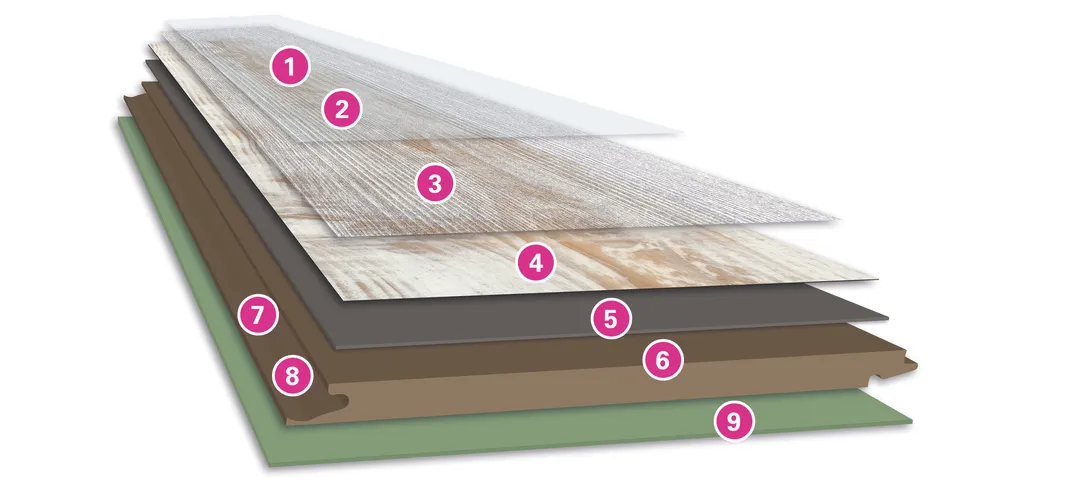

wineo Designboden Aufbau Multilayer
  1. Surface seal

    Protects the product and enables easy cleaning and maintenance

  2. Surface texture

    A range of surface textures ensure an authentic feel and appearance

  3. Wear layer

    Guarantees a high level of durability and is the basis for categorising flooring into the respective application areas

  4. Decor

    The decor film offers a host of design options

  5. Base layer

    Lends the product a high level of dimensional stability and optimum point-load resistance

  6. Core board

    The HDF Aqua-Protect® core board is swell-resistant

  7. Profile connection

    Thanks to the tried-and-tested LocTec® locking system panels can be clicked into each other without any problems

  8. Profile seal

    A special profile seal protects the entire connection system from moisture

  9. Noise-absorbing mat

    The footfall-sound-reducing system soundPROTECT is already securely integrated into wineo Multi-Layer flooring
