One surface, three product structures
To find the right flooring solution quickly, it is important to know the differences between the product structures and installation methods. The wineo 400 is particularly suitable for private living areas. Here is an overview of the properties of the collection in the different versions.
SEMI-RIGID DESIGN FLOORING FOR CLICKING IN
Hard but resilient - the classic vinyl floor for clicking even better. The wineo 400 Rigid variant is a more stable product structure that is particularly suitable for laying on existing subfloors. Despite the more stable core, it still has an elastic surface.
-
Product composition
Top element
Surface texture, surface seal, wear layer and decor film.
SPC-Core board
Stable and robust product core with integrated noiseREDUCT underlay mat.
Profile connection
LocTec® locking
-
Product information
PERFECT SOLUTION FOR:
- prepared subsurfaces with minor irregularities (renovations)
SPECIAL PRODUCT FEATURES
- low installation height of 5.5 mm
- Tele-Stop: Minor irregularities
in the subfloor will not show up - Install-Ready: integrated underlay mat cuts refurbishment times and reduces walking and impact sounds by up to 19 dB
- perfect heat distribution when used
over underfloor heating - quick and easy installation thanks to proven click connection
- simple cutting to size with a cutter knife
INSTALLATION OPTIONS
1. FLOATING- direct installation on the subsurface
- can be walked on immediately
and is easy to remove
wineo 400 | Elastic design flooring for gluing
The elastic design floor for gluing wineo 400 offers maximum functionality and maximum durability. By gluing it to the subfloor or the singleGLUE underlay mat, it prevents any warping. At the same time, wineo 400 is clean and uncomplicated to install. Thanks to the very low installation height of 2 mm, the floor is ideal for renovations.
-

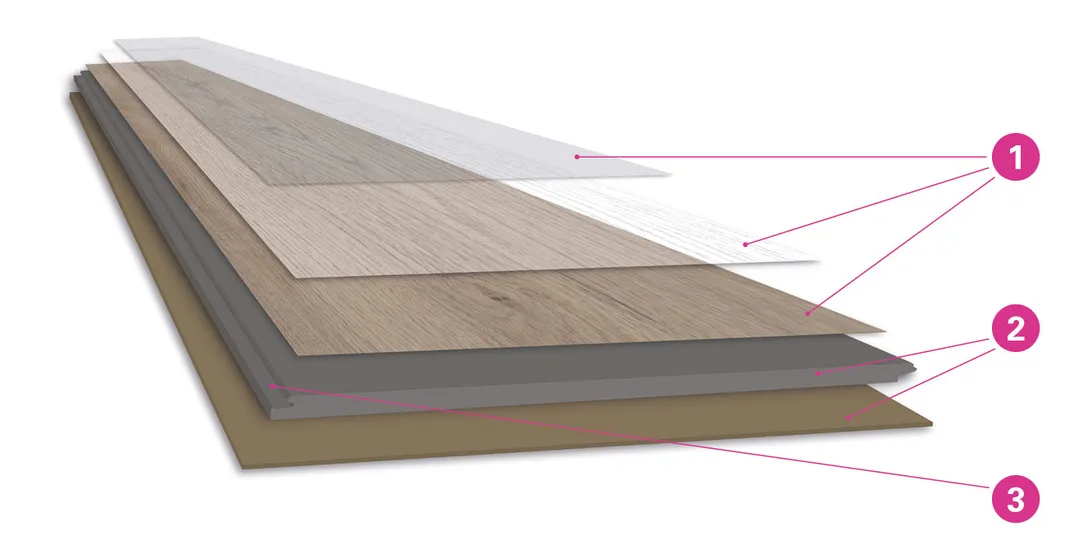

Product composition
Top element
Surface texture, surface seal, wear layer and decor film
Base layer
Lends the product a high level of dimensional stability and optimum point-load resistance
Backing
With its waffle back texture, it is used to help ensure balance and optimal installation.
-
Product information
PERFECT SOLUTION FOR
- even subsurfaces (new buildings)
- prepared subsurfaces (renovations)
- existing floor coverings (DIN 18202)
in combination with singleGLUE self-adhesive mat
SPECIAL PRODUCT FEATURES
- low installation height from 2 mm to 2.5 mm
- perfect heat distribution when used
over underfloor heating - simple cutting to size with a cutter knife
INSTALLATION OPTIONS
1. STANDARD GLUING- firm bond with the existing subsurface
- bonds to the downward self-adhesive silentPLUS underlay mat
- bouble-sided adhesive with the
doubleGLUE self-adhesive mat
2. REMOVABLE DIY GLUING
- installation on singleGLUE self-adhesive underlay mat
- no gluing to the subsurface
- easy, fast and clean to install
without liquid adhesives - can be walked on immediately
and is easy to remove
wineo 400 Multi-Layer | Rigid Design flooring for clicking in
Thanks to the LocTec locking system, wineo 400 Multi-Layer is particularly easy to install. Only a saw is needed to cut the panels for installation. Thanks to the installation height of 9 mm, even slight unevenness can be compensated for. The Aqua-Protect HDF core board is swell-protected and makes the Multi-Layer ideal for damp rooms. In addition, the integrated soundPRTOTECT underlay mat helps to reduce walking and impact noise.
-

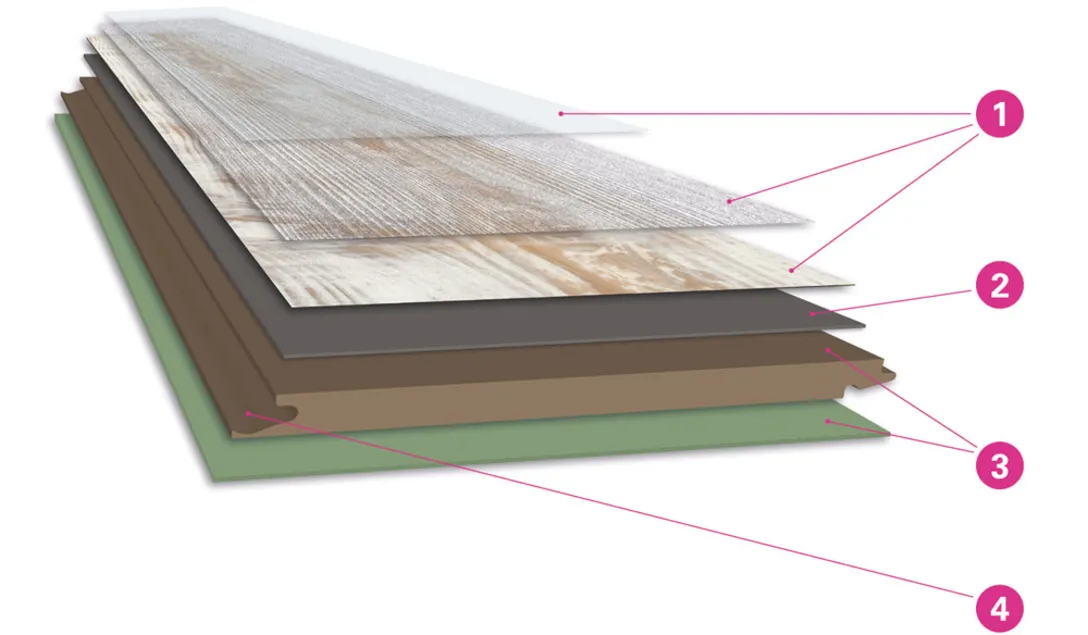

Product composition
Top element
Surface texture, surface seal, wear layer and decor film
Base layer
Lends the product a high level of dimensional stability and optimum point-load resistance
Core board
With integrated soundPROTECT underlay mat
Profile connection
LocTec® locking with profile seal
-
Product information
PERFECT SOLUTION FOR
- subsurfaces with slight unevenness (renovations)
- bridging height differences (new buildings)
SPECIAL PRODUCT FEATURES
- practical installation height of 9 mm
- Tele-Stop: minor irregularities
in the subfloor will not show up - Install-Ready: integrated underlay mat cuts refurbishment times and reduces walking and impact sounds by up to 14 dB
- quick and easy installation
thanks to proven click connection - cutting to size with a saw or laminate cutter
INSTALLATION OPTIONS
1. FLOATING- direct installation on the subsurface
- PE vapour barrier for installation
on mineral subsurfaces - can be walked on immediately
and is easy to remove
