wineo PURLINE Bioboden Produktaufbau

Product composition

Available for gluing or clicking and also in rolls. What’s on the inside and how is the floor constructed? We'll show you…

wineo 1000 for clicking

As part of the new wineo 1000 collection for private living areas, 5-mm thick PURLINE organic flooring with tried-and-tested Fold-Down technology for clicking in is available for the first time.

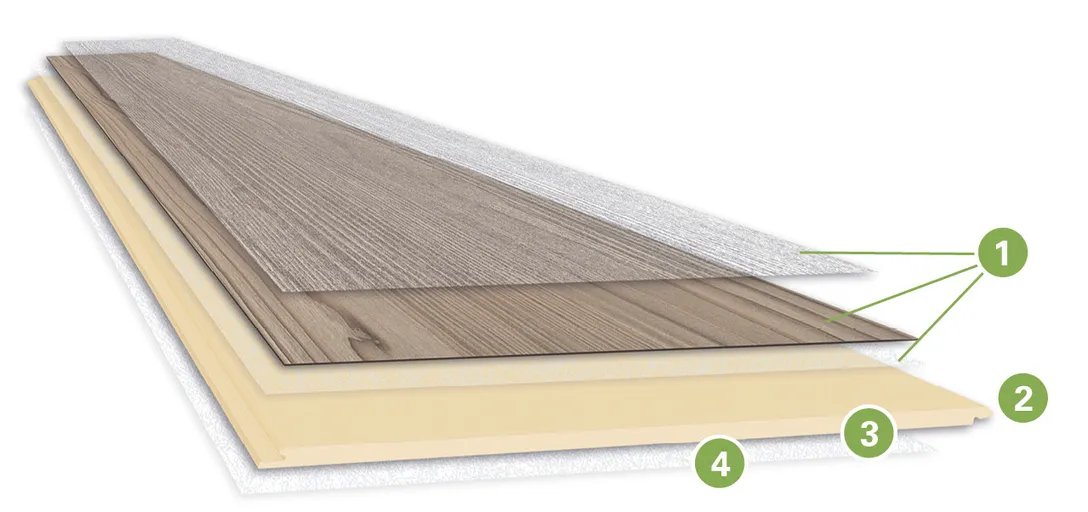

wineo PURLINE Bioboden zum klicken Produktaufbau Querschnitt
  1. Top element

    PU surface layer with textured finish, decor paper and stabilisation

  2. Profile connection

    Fold-Down technology

  3. Base layer

    ecuran high-performance composite material

  4. Backing

    Integrated FleeceTEC system for easy and convenient installation

Area of application
Perfectly suited for new construction projects or for installation on existing floor coverings as per DIN 18202.

Special product features

  • Bridges slight unevenness
  • Integrated insulation mat reduces impact and footfall sound by up to 15 dB


Installation type: floating

  • Click installation

Subsurface
The surface must be permanently dry, flat and capable of bearing the load.

Accessories / Installation aids

  • Matching skirting boards for all wood decors
  • PE vapour barrier for installation on mineral subsurfaces
  • Saw or laminate cutter

wineo 1000 wood | stone for gluing

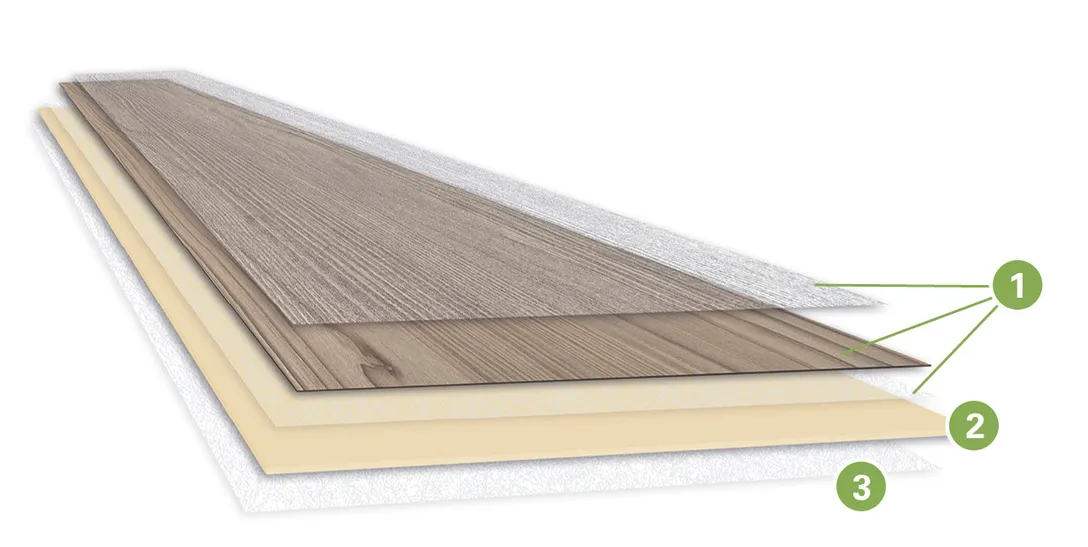

wineo PURLINE Bioboden 1000 zum kleben Produktaufbau Querschnitt
  1. Top element

    PU surface layer with textured finish, decor paper and stabilisation

  2. Base layer

    ecuran high-performance composite material

  3. Backing

    Integrated FleeceTEC system for easy and convenient installation

Area of application
Perfectly suited for new construction projects and treated subsurfaces.


Special product features

  • Low structural height of 2.2 mm
  • Flexible floor covering

Installation type: Glue installation

  • Bonds with the existing subsurface
  • Reduces footfall sound in the room


Installation type: floating

  • Installation on singleGLUE self-adhesive underlay mat
  • Quick, easy and clean

Subsurface
The surface must be permanently dry, clean, smooth and capable of bearing the load.
(plastered if gluing)


Accessories / Installation aids

  • Matching skirting boards for all wood decors
  • singleGLUE underlay mat
  • Cutter knife for easy and clean cuts

wineo 1000 wood XXL Multi-Layer

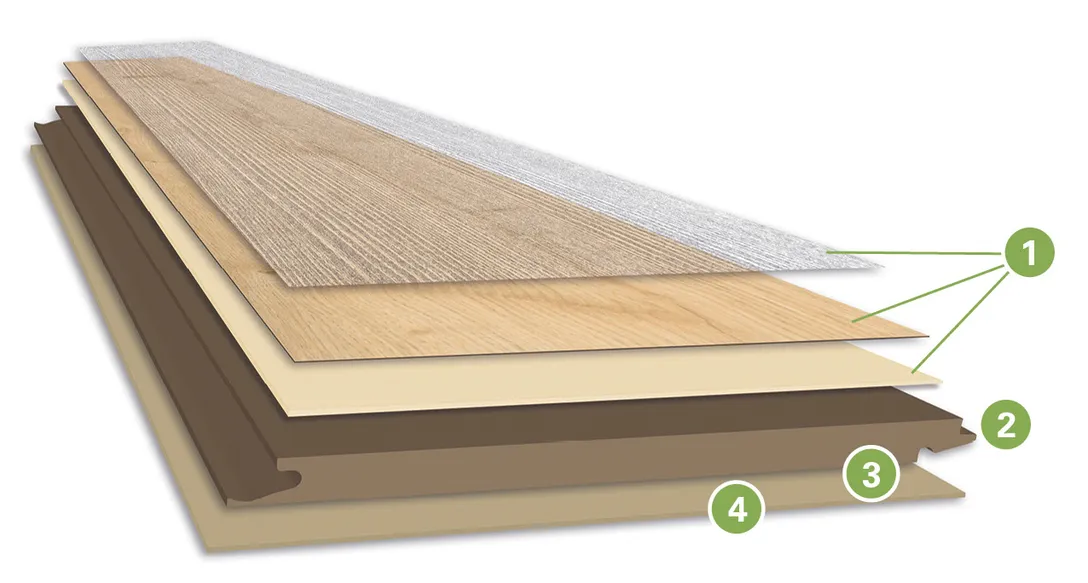

wineo PURLINE Bioboden Multi- Layer Produktaufbau Querschnitt
  1. Top element

    PU surface layer with textured finish, decor paper and ecuran stabilisation

  2. Profile connection

    Fold-down locking function

  3. Core board

    Swell-resistant Aqua-Protect® HDF core board

  4. Underlay

    Integrated underlay SoundPROTECT for an impact sound reduction of up to 15 dB

Area of application
Perfectly suited for new construction projects or for installation on existing floor coverings as per DIN 18202.


Special product features

  • Bridges slight unevenness
  • Integrated insulation mat reduces impact and footfall sound by up to 15 dB



Installation type: floating

  • Click installation

Subsurface

  • The surface must be permanently dry, flat and capable of bearing the load.



Accessories / Installation aids

  • Matching skirting boards for all wood decors
  • PE vapour barrier for installation on mineral subsurfaces
  • Saw or laminate cutter

wineo 1500 in plank and roll format

Roll format or practical planks? Both have their individual advantages, are extremely practical for renovation work due to their low structural height of 2.5 mm and have ideal installation attributes.



wineo PURLINE Bioboden zum kleben Produktaufbau Querschnitt
  1. Top element

    PU-top layer with surface structure , decor paper & stabilisation

  2. Base layer

    ecuran high-performance composite material

  3. Backing

    integrated FleeceTEC-System® for easy and comfortable installation

wineo 1500 acoustic ∞

wineo PURLINE Bioboden zum kleben Produktaufbau Querschnitt
  1. Top element

    PU-top layer with surface structure , decor paper & stabilisation

  2. Base layer

    ecuran high-performance composite material

  3. Insulation mat

    with integrated insulation mat for an impact sound reduction up to 17 dB
