wineo 1000 | Product composition

For gluing or clicking and for clicking as multi-layer. What's inside and how is the floor constructed? We show you.

PURLINE Bioboden with best ingriedients

Of course, the inner values are also important. In addition to sustainability and durability, wineo 1000 impresses with three product qualities. Depending on the application area and subfloor condition, you will always find the right product in wineo 1000. A sustainable all-round talent with design appeal.

wineo 1000 wood + stone | Elastic organic flooring for clicking in

As part of the new wineo 1000 collection for private living areas, 5-mm thick PURLINE organic flooring with tried-and-tested Fold-Down technology for clicking in.

  • Product composition

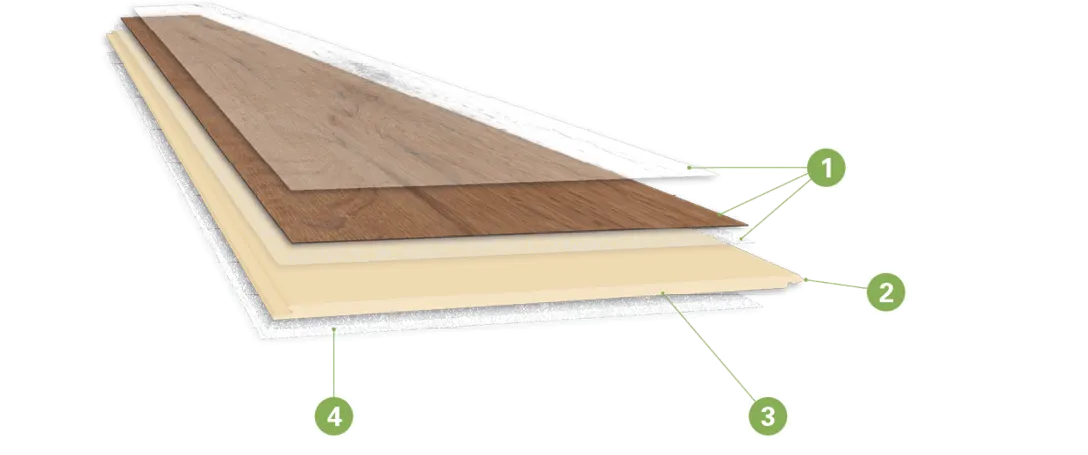

    wineo 1000 PURLINE Bioboden zum Klicken Produktaufbau Querschnitt

    Top element

    PU-top layer with NatureSurface decor and stabilisation

    Profile connection

    Fold-Down locking (wood)
    LocTec locking (stone)

    Base layer

    ecuran high-performance composite material

    Integrated backing

    FleeceTEC-System for an easy and convenient installation

  • Product information

    PERFECT SOLUTION FOR:

    • even subsurfaces (new buildings)
    • prepared subsurfaces (renovations)

    SPECIAL PRODUCT FEATURES

    • low installation height of 5 mm
    • perfect heat distribution when used over underfloor heating
    • quick and easy installation thanks to proven click connection
    • simple cutting to size with a cutter knife

    INSTALLATION OPTIONS
    1. FLOATING

    • directly onto the prepared subsurface
    • installation on stabilising silentComfort underlay mat
    • can be walked on immediately and is easy to remove

wineo 1000 wood + stone | Elastic organic flooring for gluing

PURLINE wineo 1000 organic flooring for gluing, a flooring in a class of its own, impresses with a product height of 2 mm and meets all the requirements of a sustainable product. At the same time, it is a hard-wearing and easy-care all-rounder.

  • Product composition

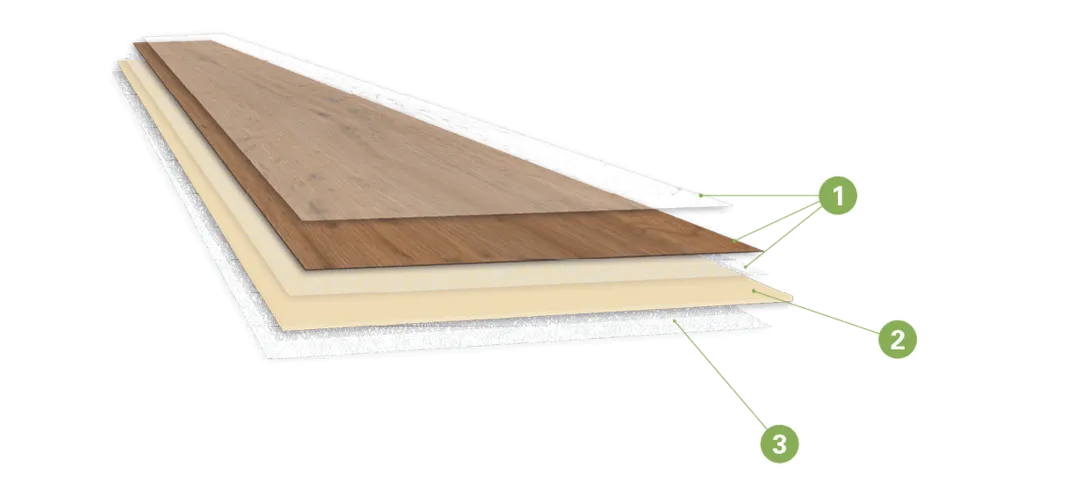

    wineo 1000 PURLINE Bioboden zum Kleben Produktaufbau Querschnitt

    Top element

    PU-top layer with NatureSurface decor and stabilisation

    Base layer

    ecuran high-performance composite material

    Integrated backing

    FleeceTEC-System for an easy and convenient installation

  • Produktinformationen

    PERFECT SOLUTION FOR:

    • even subsurfaces (new buildings)
    • prepared subsurfaces (renovations)
    • existing floor coverings (DIN 18202) in combination with silentPREMIUM underlay mat

    SPECIAL PRODUCT FEATURES

    • low installation height of 2 mm
    • perfect heat distribution when used over underfloor heating
    • simple cutting to size with a cutter knife

    INSTALLATION OPTIONS
    1. STANDARD GLUING

    • a. firm bond with the exisiting subsurface
    • b. bonds to the double-sided,
      self-adhesive silentPLUS underlay mat

    2. REMOVABLE DIY GLUING

    • installation on silentPREMIUM self-adhesive underlay mat
    • no gluing to the subsurface
    • easy, fast and clean to install without liquid adhesives
    • can be walked on immediately and is easy to remove

wineo 1000 wood + stone | Rigid organic flooring for clicking in as Multi-Layer

The healthy and hard-wearing PURLINE organic floor is also ideal for the home as a multi-layer in XXL plank format. With its 9 mm installation height, it easily bridges unevenness and is therefore particularly suitable for renovation work.

  • Product composition

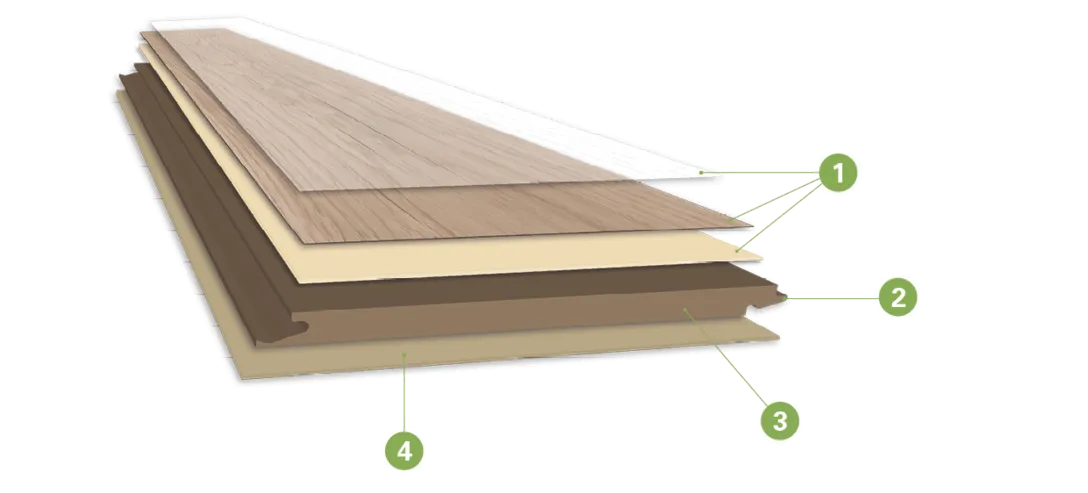

    wineo 1000 PURLINE Bioboden als Multi-Layer zum Klicken Produktaufbau Querschnitt

    Top element

    PU-top layer with NatureSurface, decor and stabilisation with ecuran

    Profile connection

    Fold-Down locking (wood)
    LocTec locking (stone)

    Core board

    Swell-protected Aqua-Protect® HDF core board

    Underlay

    Integrated underlay soundPROTECT for an impact sound reduction of up to 15 dB

  • Product information

    PERFECT SOLUTION FOR:

    • subsurfaces with slight unevenness (renovations)
    • bridging height differences (new buildings)

    SPECIAL PRODUCT FEATURES:

    • practical installation height of 9 mm
    • Tele-Stop: Minor irregularities in the subfloor will not show up
    • Install-Ready: integrated underlay mat cuts refurbishment times and reduces walking and impact sounds by up to 15 dB
    • quick and easy installation thanks to proven click connection
    • cutting to size with a saw or laminate cutter

    INSTALLATION OPTIONS
    1. FLOATING

    • direct installation on the subsurface
    • PE vapour barrier for installation
      on mineral subsurfaces
    • can be walked on immediately and
      is easy to remove
